Tin Can Bottle Depalletizing Machine Bulk Can Depalletizer High Speed

Name: Tin Can Bottle Depalletizing Machine Bulk Can Depalletizer High Speed
Brand: Sunswell
Price: 10000 USD

Quality Tin Can Bottle Depalletizing Machine Bulk Can Depalletizer High Speed wholesale

Brand Name : Sunswell

Model Number : XD600

Certification : ISO,CE

Place of Origin : Jiangsu,China

MOQ : 1 set

Price : USD 10000 per set

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 75 days

Packaging Details : 1.Seaworthy wooden cases plus wrapping film for Automatic carbonated beverage can filling machine/beer canning machine. 2. If fumigating certificate required, we can also provide the service.

Dimension(L*W*H) : L5800mm*W1350mm*H3700mm

Weight : 3700 KG

Capacity : 36000CPH

Feet adjustable : +/-50mm

Platform : Carbon steel

Empty pallet stacker : ten pallets

Total power : 2.05KW

Contact Now

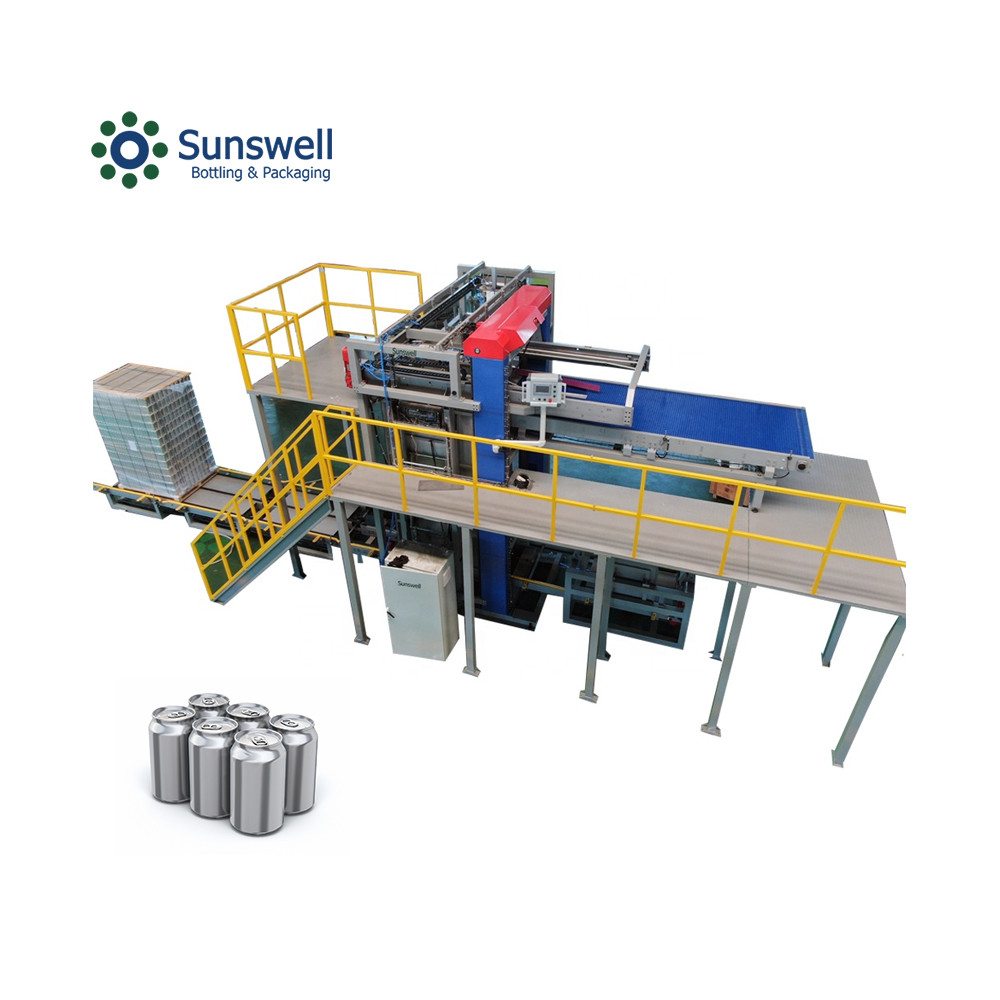

Bulk can depalletizer high speed tin can bottle depalletizing machine

High lever bulk can depalletizer are mechanical machine that unload (depalletize) packaged empty cans or glass bottles from the pallet. The depalletizer allows the transfer of products and materials from pallets without the use of human personnel, saving thus time, money and effort.

Tin Can Bottle Depalletizing Machine Bulk Can Depalletizer High Speed

Advantages

High performing Reliable Flexible (in terms of container, format and pallet) Quick and easy format changeover Completely automated Fully customizable High operator safety standards

Appliance scope

For various metal cans, glass bottles, plastic bottles for layered depalletizing.

Depalletizer workflow and principles

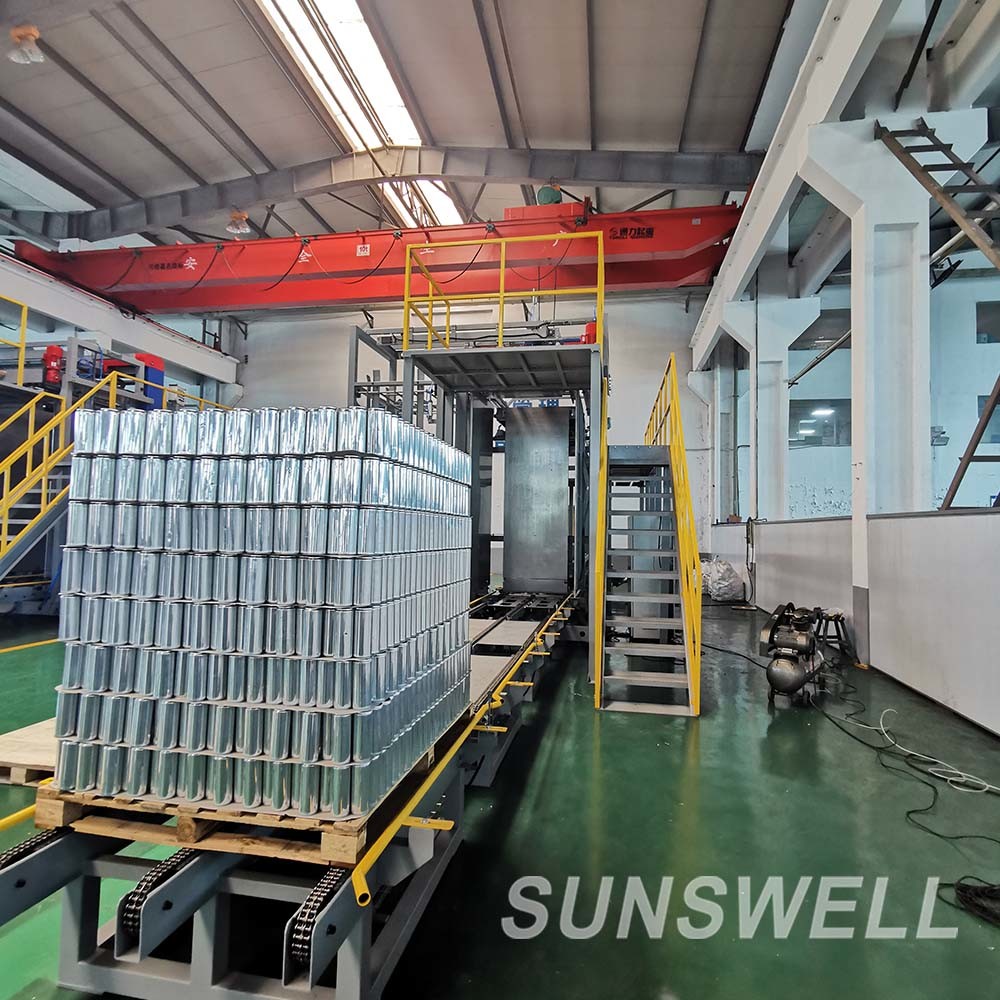

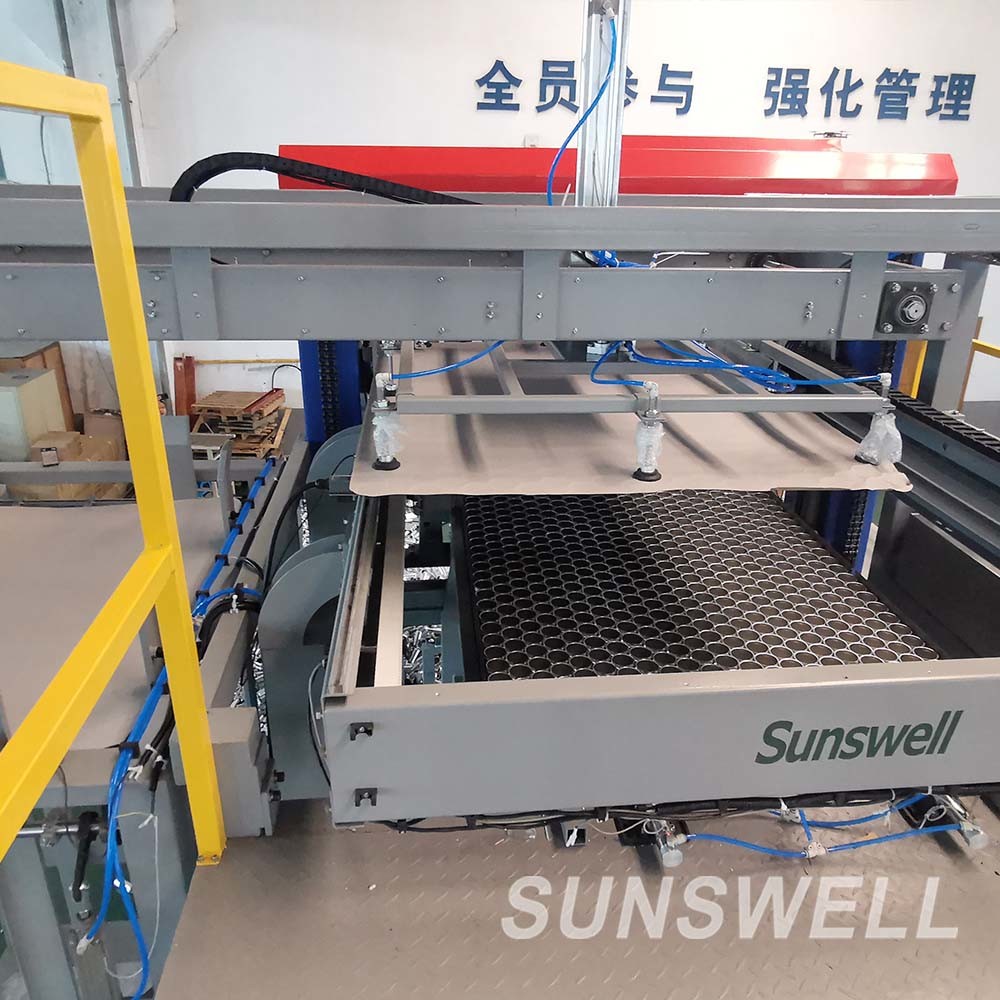

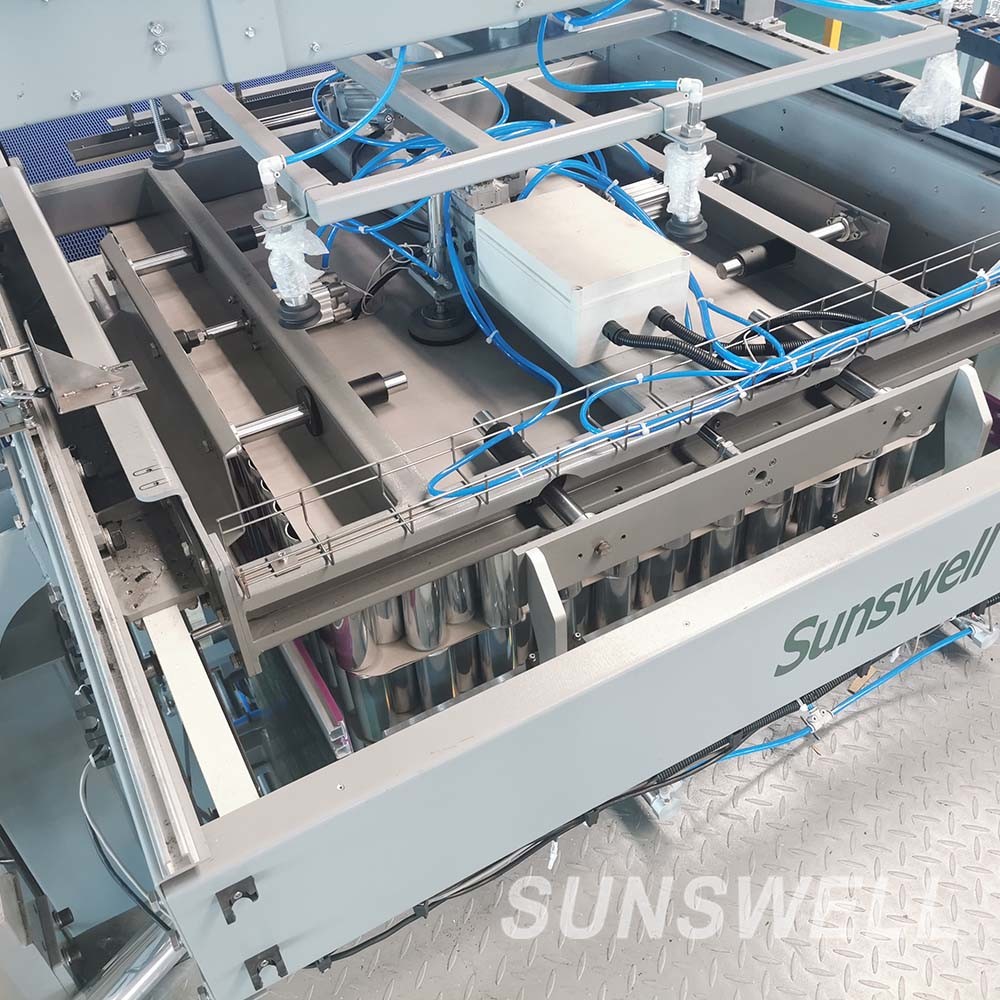

Forklift put the whole stack cans/ bottles into unstacking station (hydraulic lift table) Chain lifter will transit the packed pallet to the upper most of the depalletizer. Four sides clamps will hold the uppermost whole layer cans or bottles from four sides, moving in parallel to the outlet multi lane conveyor. Four sides camps open to release whole layer cans or bottles to the multi lane conveyor. Then the four sides cylinder clamps will back to original position. Pneumatic absorb hands will absorb the next layer top side isolate pad, move the pad to pad collector. Chain lifter, hold the board rise to a certain height crib.. Do the same procedure until the last layer, Hydraulic lifts pallet fell to bottom, then transit to empty pallets stacker. Forklift remove the empty pallet. Repeat above actions.

Tin Can Bottle Depalletizing Machine Bulk Can Depalletizer High Speed

Specifications

PLC	Siemens/Mitsubishi/Schneider/Delta
Motor	SEW/ABB/Siemens/Tongyu/Nord/Weg/Jie
Pneumatic control	Airtac/Festo/SMC
Low volts component	Schneider/Siemens/Chintai/Delixi

Technical Parameters

  	 			Model 			XD600 Capacity: 36000CPH (330ml)
 			Feet adjustable 			+/-50mm
 			Platform 			carbon steel
 			Conveyor height 			3100mm
 			Pallet height 			2800mm
 			Workshop height 			4500mm
 			Empty pallet stacker 			ten pallets
 			Pallet size 			1420mm*W1120mm*H150mm (customized)
 			Overall dimension 			L5800mm*W1350mm*H3700mm
 			Weight 			3700kg


Power

Power supply	380V, 50Hz, 3PH
Total power	2.05kw
Main motor	0.75kw
Can conveyor motor 1	0.75kw
Can conveyor motor 2	0.75kw
