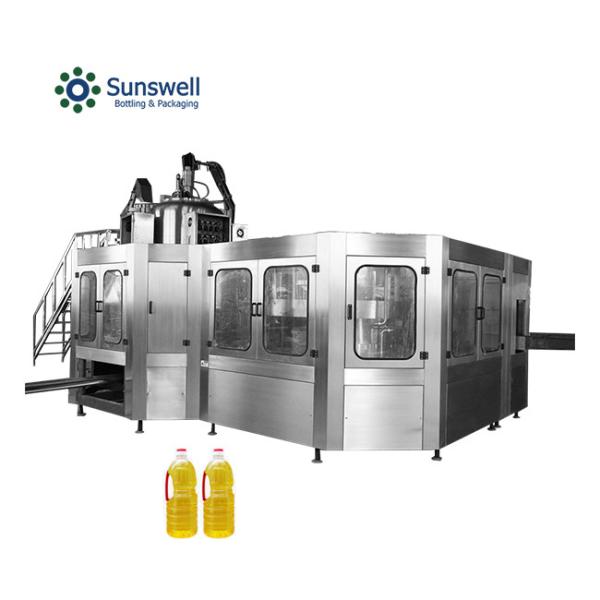

High Speed Edible Oil Filling Machine 1000bph Automatic Liquid

Brand Name : Sunswell

Model Number : ssw

Certification : ISO,CE

Place of Origin : China

MOQ : 1 Set

Price : USD 20000 per Set

Payment Terms : L/C, T/T

Supply Ability : 50 Set/Sets per Year

Delivery Time : 50 days

Packaging Details : wood case & carton packaging

Type : Filling Machine

Packaging Type : Bottles

Voltage : 380V, 50Hz (adjustable)

Weight : 2200 KG

Key Selling Points : Long Service Life

Filling Material : Oil

Warranty of core components : 2 years

Capacity : 1000-20000bph

Bottle type : PET Plastic Bottle

Number of working positions : filler 16, capper 5

Air consumption : 0.5 M3/min

Applicable Industries : Manufacturing Plant, Food & Beverage Factory

Application : Food, Commodity

Packaging Material : Plastic, Glass

Driven Type : Electric

Dimension(L*W*H) : 1800*2670*2950 mm

Warranty : 2 years

Machinery Capacity : 4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH

Core Components : Motor, Pump, PLC, Gear

Filling Accurancy : ±0.5%

Suitable for : diameter 50~200mm, height 150~360mm

Material supply pressure : 0.03~0.08 MPa

Vacuum in filling tank : 50~80mbar

Main motor power : 1.5Kw

Contact Now

Products Description

Edible Oil Filling Machine

The edible oil filling machine is special for edible oil filling, capping and equipped with rotary transmission, PLC and frequency adjuster in speed. It is innovated and designed in the requirement of edible oil technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for edible oil producers.
High Speed Edible Oil Filling Machine 1000bph Automatic Liquid
High Speed Edible Oil Filling Machine 1000bph Automatic Liquid
High Speed Edible Oil Filling Machine 1000bph Automatic Liquid
Main Features
*Compact structured, good-looking, easy to operate and highly automated.
* Parts with contact with material are all made of stainless steel of food-grade, no dead angles and easy to clean up.
* Filling volume is controlled with film valves to ensure accurate filling.
* High-speed and highly accurate filling valves ensure no loss of liquid at high speed.
* Liquid buffer element specially designed inside filling valvescan eliminate the cutting affection and wallop between liquid and container, easy to eliminate the air bubble in material.
* Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage.
* Highly effective cap sorting and feed in system is protective for feed in and cap absence.
* Equipped with overload system to safeguard machine and operators.
* Equipped with cap absence detector and bottle jam-up detector,which could stop the monoblock in that case.
* Equipped withoutput calculating function for monoblock.
* Main electronic components (touch screen, PLC and frequency inverter) are imported products.
Model
GF12-5
GF16-5
GF20-5
GF30-6
GF40-8
GF60-10
Capacity
(BPH/1L)
2,000
3,000
5,000
8,000
12,000
15,000
Machinery Structure
High Speed Edible Oil Filling Machine 1000bph Automatic Liquid

Bottle infeed

Bottle infeed by combination of infeed screw and infeed starwheel. Equipped with bottle jam protection device.
High Speed Edible Oil Filling Machine 1000bph Automatic Liquid

Filling Machine

The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck.
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it starts to fill.
Bottle is conveying by the wheel in the filling part.
High Speed Edible Oil Filling Machine 1000bph Automatic Liquid

Flip (Press-on) Capper

Edible Oil Filling Machine capper
High Speed Edible Oil Filling Machine 1000bph Automatic Liquid

Conveyor wheel part

The material is combination of stainless steel and nylon and the wheel has block bottle protect device.

Machine Frame

* The machine frame is a welded structure of high quality carbon steel with the surface anti-rust treated and coated. The machine frame is wrapped with stainless steel sheet.
* Driving system of the 3-in-1 Unit is positioned under the machine table. One main motor provides driving power via gear
transmission.
* The gear transmission system is an interleaved arrangement of steel gears and nylon gears.
* The output shaft of the main motor is equipped overload protection to secure machine safety.

Electronic control system part
The electronic components like PLC and transducer are from Schneider, Mitsubishi, Omron, etc., and the pneumatic devices are also from international famous brands.
