150BPH 5 Gallon Water Filling Machine SUS316L Compact Structure

  • 1
  • 2

Brand Name : SUNSWELL

Model Number : XGF

Certification : CE, ISO

Place of Origin : Jiangsu

MOQ : 1

Price : Negotiable

Payment Terms : T/T, LC,WESTERN UNION

Supply Ability : 100 sets per year

Delivery Time : 50 days

Packaging Details : Seaworthy wooden cases plus wrapping film

Product Name : Drinking/Mineral/Pure Water Rinsing-Filling-Capping Machine

Bottle Type : PET Plastic Bottle

Capacity : 150BPH-2000BPH

Filling Volume : 18.9L, 19L, 19.9L, 20L

Filling Principle : Gravity Filling

Material : SUS 304/316L

Contact Now

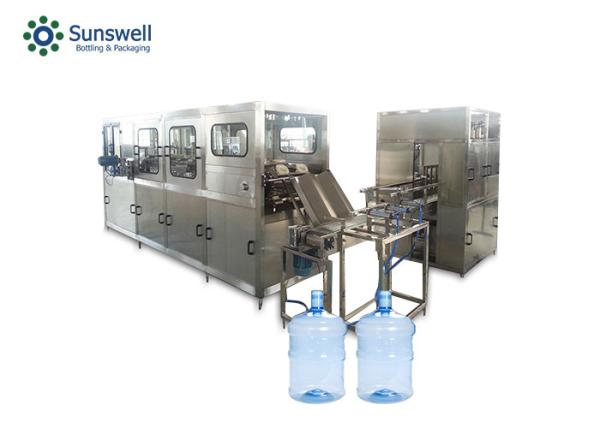

Automatic 5 Gallon Water filling machine washing filling capping 3 in 1filling line

The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully

automatic barreled water producing equipment combined with machine, electronic and pneumatic components.

The line equips with water spraying device in order to ensure those caps sterile and clean ,it also can automatically carry

out barrel,washing,steriizing,filling,capping,counting and products discharging,with complete function,modern design and

high degree of automation ,It is a new kind of barreled water auto producing line.

Specifications:

Main technical data
Model QGF-100 QGF-300 QGF-450 QGF-600 QGF-900 QGF-1200 QGF-2000
Number of filling heads 1 2 3 4 8 12 16
Filling capacity 18.9 18.9 18.9 18.9 18.9 18.9 18.9
Barrel size (mm) φ270×490 φ270×490 φ270×490 φ270×490 φ270×490 φ270×490 φ270×490
Production capacity (b/n) 100-120 200-240 300-400 600 900 1200 2000
Gas pressure (Mpa) 0.4-0.6 0.4-0.6 0.6 0.6 0.6 0.6 0.6
Gas consumption (m3/min) 0.37 0.6 0.6 1.2 2.2 3 4.5
Motor power(kw) 1.75 3.22 4.8 8.5 8.5 8.5 8.5
Rated voltage (V) 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz
Overall dimension (mm) 3790×650
×1550		 3550×800
×1800
2800×1100
×1800		 3550×1200
×1800
3800×1100
×1800		 3650×1500
×1800
3800×1100
×1800		 2200×1860
×2700
not include cleaning		 2560×2350
×2750
not include cleaning		 3100×2800
×2750
not include cleaning
