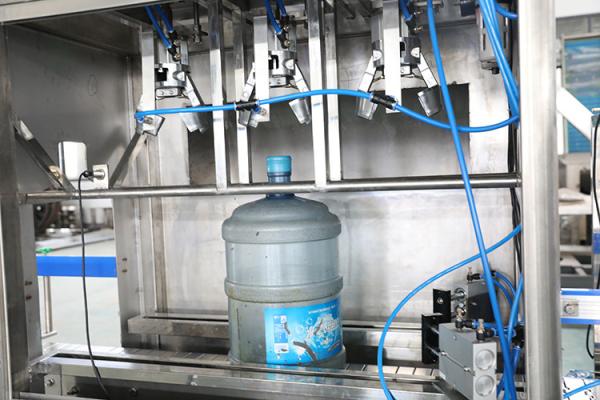

150BPH 300BPH 450BPH 5 Gallon Water Filling Machine

Brand Name : Sunswell

Model Number : TGX-450

Certification : CE, ISO, SGS, UL

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 30 days

Packaging Details : Seaworthy Wooden Case

After-sales service provided : Engineers available to service machinery overseas

Dimension(l*w*h) : according to 5 Gallon Bucket Water Filling Line

Voltage : 380V 50HZ 3P or customized

Application : Beverage

Driven type : Electric

Automatic grade : Automatic

Contact Now

150BPH 300BPH 450BPH 600BPH 900BPH 20 Liter Bottled 5Gallon Barrel 20L Water Bucket Jar 5 Gallon Water Filling Machine


Production Capacity: 100 - 1200 Bottles/Hour
Bottle Material: Plastic (PC/PET/PP) Suit for bottle size: 3 Gallon 4 Gallon, 5 Gallon and 6Gallon can also be applied, but the sample bottle shall be provided. (1 Gallon=3.75Liter)
We will assist you with establishing your bottled water plant from the conception of the idea to when you are ready to open your plant.

Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.


Specifications:

Model

TGX-450

Product capacity

450 barrel/hour

Filling head

3

Equipment size

3700×1800×2000mm

Power supply

Main machine (KW)

3.5

Compressed air

Air pressure

0.5Mpa

Gas consumption

1.5m3/min

Washing working position

circulating water (2 positions)

pure water (2 positions)

Drip working position: 1 pc

consumption

500-800l/hr


150BPH 300BPH 450BPH 5 Gallon Water Filling Machine

150BPH 300BPH 450BPH 5 Gallon Water Filling Machine
